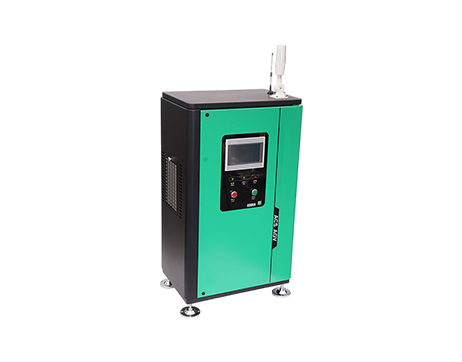

The ACS series of intelligent chargers feature a modular design that integrates high-frequency soft switch with DSP digitalization, offering high conversion efficiency and power factor. The main circuit module, designed through parameter optimization, provides continuously adjustable charging currents for a variety of AGV vehicles The ACS chargers are designed with WIFI or infrared diffuse reflection and infrared direct transmission for smart charging, resulting in a completely automated charging process. The chargers are equipped with a variety of communication interfaces, allowing for data exchange with the majority of lithium battery BMS and upper computers, etc.

The chargers feature a side-mounted automatic telescopic mechanism for quick and convenient installation; it has a compact size and multiple redundant charging modules connected in parallel for simple construction and safe and reliable operation.

Equipped with a 7/4.3-inch touchscreen, the charger allows for control of the charging process, display of charging status, recording of charging data, and logging of fault information. The charger also offers a professional configuration interface, enabling advanced users to customize charging curves based on their specific needs.

2. Key Features of the Charger

1. The charger features an integrated design for charging station, complete with an automatic telescopic mechanism for quick and convenient installation. (A separate version is also available with split structure, where the ACS is not furnished with a telescopic mechanism)

2. Space is reserved for the installation of third-party equipment, providing the capability for system integration.

3. The modular design allows for adaptability to a variety of AGV solution requirements.

4. The charger is designed with protective features against short circuit, overvoltage, overcurrent, and overtemperature.

5. Both automatic and manual charging is available (reversing the connections is strictly prohibited during forced charging).

6. The charger has various communication interfaces, including dry contact, CAN, Ethernet, RS485, and WIFI (optional, to be configured to customer requirements).

7. The management background can perform real-time data queries on the charger through various data interfaces such as CAN, RS485, and WIFI (optional, to be configured based on specific customer requirements).

3. Normal Operating Conditions

(1) The height above sea level does not exceed 1000 m;

(2) The ambient medium temperature is within the range of -10°C to +45°C (inclusive);

(3) The relative humidity of the air should not exceed 95% (without condensation) when the storage temperature is between -40°C and 75°C;

(4) The operating environment is free from conductive dust and explosive hazards;

(5) The operating environment is free from gases and vapors that may corrode metals or insulation;

(6) Locations protected from rain and snow intrusion;

(7) Areas with a vertical surface tilt of no more than 5 degrees, and free from severe vibration and shock.
