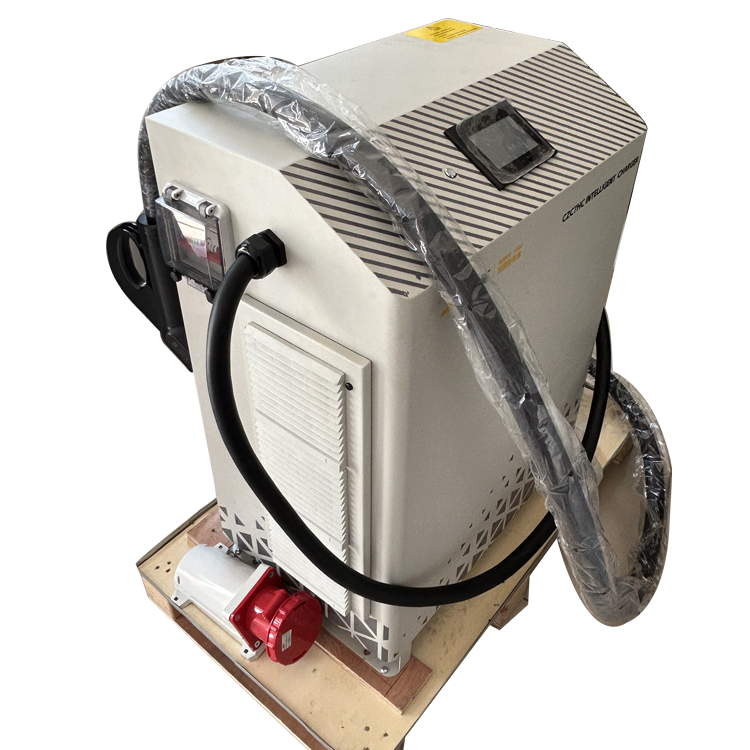

The CZC7HC series intelligent charger uses a high-performance embedded charging control unit to control the charging current.

The main circuit module with optimized design provides continuously adjustable charging current for various lithium batteries to meet various charging process requirements.

The charge controller has a built-in default charging curve. Customized charging curves can also be set and stored at the factory according to user needs.

line to meet customized charging process requirements.

The charging controller monitors various parameters in the charging process in real time, so that the charger has perfect protection function and real-time protection

The charging process proceeds smoothly. At the same time, it also provides a communication interface to provide interlocking control with other devices.

Main functions of charger:

1. Human-machine interface: 4.3” serial port LCD color touch screen is used to display the charging process parameters;

parameters.

2. Charging data record: Check the charging process event record on the LCD screen.

EEPROM records charging data, which can be analyzed.

SD card records the charging process curve, which can be read through PC. (Optional)

3. Scheduled charging function: You can set the start time of scheduled charging, use the valley electricity to charge, and save electricity

fee.

4. Setting parameter power-off protection: The system can memorize the parameters set by the user for a long time and will not lose them even if there is a power outage.

5. Input power phase sequence: There is no phase sequence requirement for the power grid, and the A, B, and C three-phase inputs can be wired arbitrarily.

6. Special charging functions: forced start (0V) function, the charger will automatically shut down if the connection line falls off during charging (battery

fall-off detection).

7. Protection function: open circuit, reverse connection, overcurrent, overvoltage, overheating, power supply shortage and other fault protection and alarm functions.

Overview

High Voltage Protection Grade IP 54 EV Forklift Golf Cart Smart Intelligent Portable Lithium Battery Charger 750V 20KW 40KW CZC7HC
